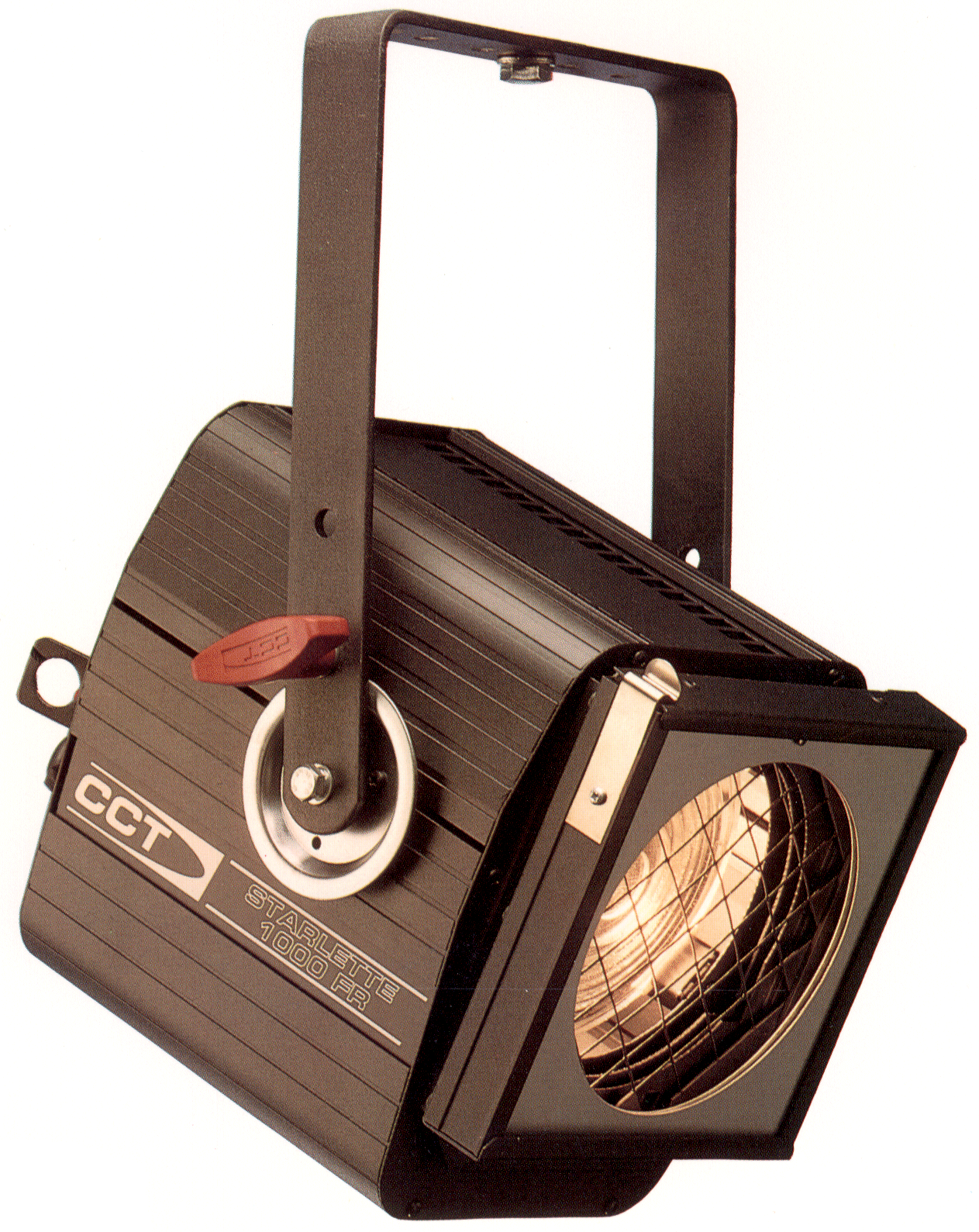

Z0050 STARLETTE 1- 1.2 Kw FRESNEL 6-57 DEG

Online Price £355.20 Inc VAT
This item is discounted for members
This high performance rugged unit with a wide range of beam angles from its 150mm (6") lens coupled with a soft-edged beam is ideal for all 'on-stage' work. (For professional use : This item does not include a plug)
Click to expand

Detailed Description

This high performance rugged unit with a wide range of beam angles from its 150mm (6") lens coupled with a soft-edged beam is ideal for all 'on-stage' work.

Click to expand

Product Features

The lead screw focus control is very accurate and smooth - and as the drive is external, no special lubrication is necessary. Our system prevents the jamming which can occur on the lead screw of some competing products.

A hinged bottom tray, which ejects the CEE connector, allows easy access for lamp changing and the plug can be kept next to the lantern by passing the cable through the rear handle.

Photometric data

  CCT Starlette Z0050 Fresnel (1200W 30,000 lm)
Minimum angle   Maximum angle
Peak Candela (cd) 156,000 Peak Candela (cd) 17,750
Beam Angle² (°)   Beam Angle² (°)
Cut off angle³ (°)   Cut off angle³ (°)
Distance (m) 3 6 9 12 Distance (m) 3 6 9 12
Cut off dia (m) 0.30 0.60 0.90 1.20 Cut off dia (m) 3.24 6.48 9.72 12.96
Peak Illumination (lux) 17,355 4,336 1,925 1,085 Peak Illumination (lux) 1,970 495 220 125
Typical performance based on calibrated T29 1200W 240V bi-plane 3060K 30,000 lumen
All photometric data given is indicative of typical performance only. Specifications and materials may be changed without prior notice.
¹ Field Angle: where intensity drops to 10% of peak lux
² Beam Angle: where intensity drops to 50% of peak lux
³ Cut off Angle: where intensity drops to zero of peak lux

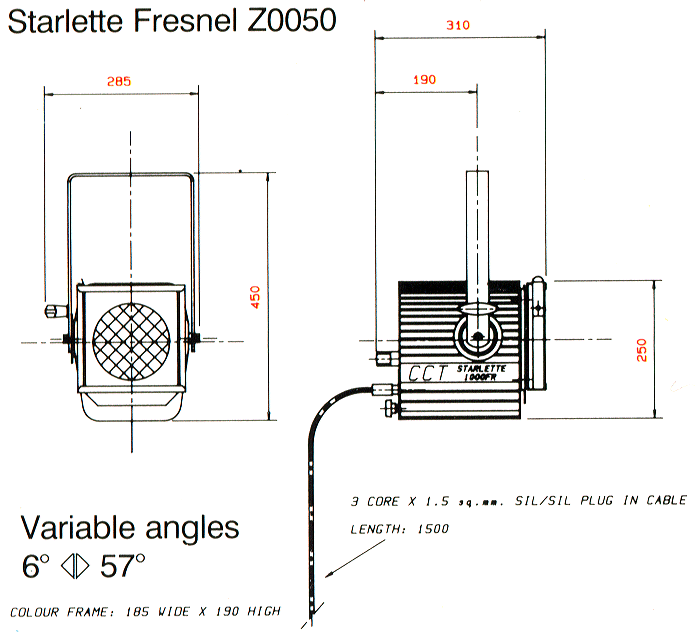

Reference Information

  CCT Starlette Z0050 Fresnel
Height¹ (mm) 450
Height² (mm) 250
Width (mm) 285
Depth (mm) 310
Weight (kg) 6.8

¹ Height of luminaire when in horizontal hanging position
² Height of luminaire excluding yoke

Accessories

Z0051 4-leaf rotatable barndoor
Z0011 Extra colour frame
Y0083 Hookclamp
Y0082 Safety bond
